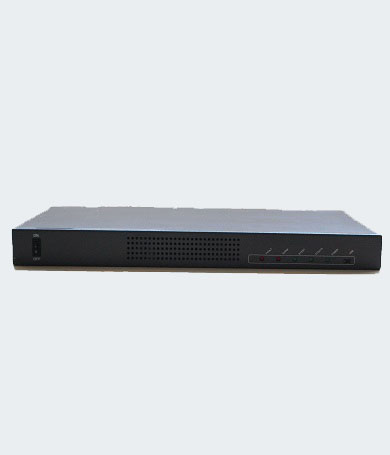

Battery Monitoring System is developed to meet the requirements of real-time monitoring of battery operation. Through the collection cable connected to each battery in the battery cabinet, the key parameters of each battery are detected in the working process. The monitoring of multiple operating parameters such as battery voltage, current, temperature, internal resistance, etc. is realized, and multiple communication modes are provided to communicate with UPS or upper computer, which is convenient for remote monitoring and centralized monitoring.
Application fields:It is suitable for various battery testing
and use occasions with power frequency machine, high frequency machine, DC
power supply and other systems.
The advanced DSP digital signal processor is used in the system detection unit to achieve high-precision data processing.
The input impedance of the detection circuit is very high, which makes the voltage drop of the battery sample line negligible, and greatly improves the detection stability.
The design of the system adopts multiple protection principles, and the sampling end and communication end are isolated by optocoupler, so as to ensure the safe and secure use of customers.
More than 90% of the components in the system design are of international famous brands. The equipment is aged for 24 hours before leaving the factory and relevant verification tests are carried out to ensure the high reliability of the system.
Two sets of independent RS485 communication interfaces are used in the battery monitoring system, which can communicate and transmit data with UPS and monitoring host computer at the same time.
With powerful function and large amount of data, it can automatically save fault data, automatically record battery data on a regular basis and automatically record battery discharge data.
Special requirements can be customized
