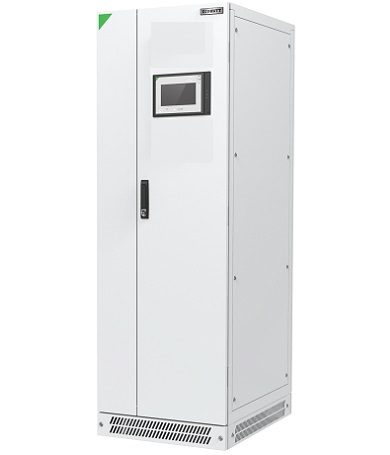

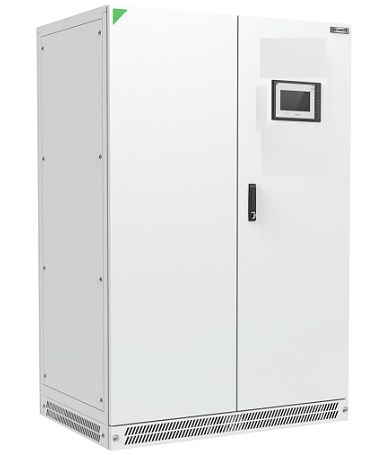

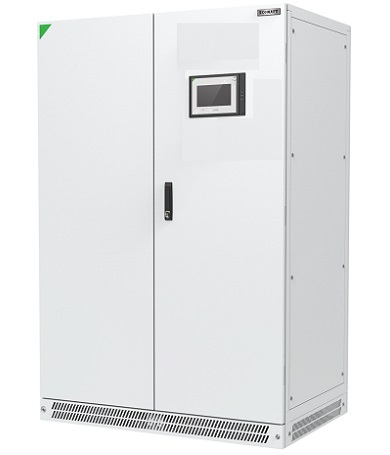

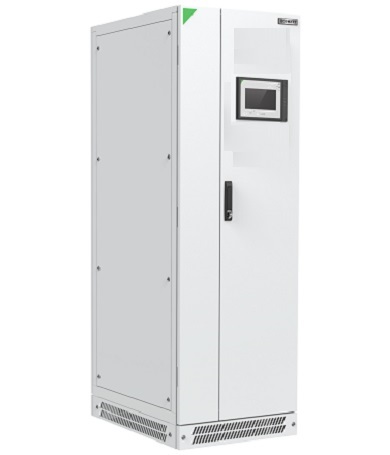

The S6000 series 3/3 phase Industrial UPS is specifically designed for the harsh environments in petroleum, chemical, natural gas, nuclear power, power plants, metallurgy, marine engineering, steel, military and other industrial fields with high safety and reliability requirements and convenient maintenance. The product has comprehensive protection and strong resistance to power grid fluctuations and harsh environments. The output power factor is optional at 0.8/0.9, and the cabinet can choose welding or splicing structure according to the operating environment, which has extremely high safety and reliability.
Application fields: It is specially used in industrial fields with harsh application environments such as petroleum, chemical industry, nuclear power, industrial manufacturing, metallurgy, electric power, military industry, aviation, rail transit, shipbuilding, and steel. There are also unique designed models that are specifically tailored to application scenarios such as power, offshore engineering, nuclear power, and ship-mounted.
Performance features:
Multi-DSP control, independent circuit detection and multiple fault protection, with software bypass automatic takeover function, reliable and safe.
Built-in multiple communication ports and a variety of dry node signal interfaces can realize real-time remote network management.
It has strong load capacity, strong output short-circuit resistance, special three-proof processing technology on the circuit board, and strong adaptability to harsh environments.
Ultra-long mean time between failures and ultra-short mean troubleshooting time, internal modular design, full front operation, built-in manual maintenance bypass, easy maintenance.
The system adapts to different power grid systems, and the output voltage frequency can be configured on site (50Hz or 60Hz).
Unique air duct and protection design, standard IP30 protection level, optional higher level protection components.
480V/60Hz, 220V/60Hz output voltage system can be customized.
Power range: 10 ~ 200KVA
Working mode: 3/1 phase, double transformation online, input/output full isolation
Special requirements can be customized
