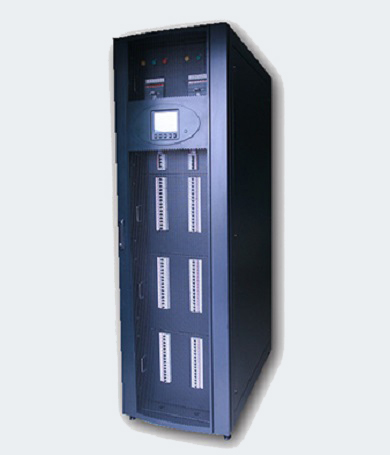

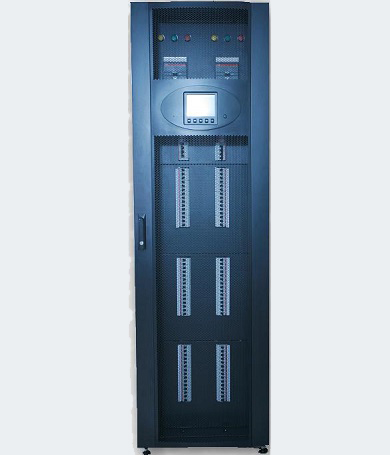

ECOWATT IPDS is a new type of energy management equipment developed and designed according to the intelligent and digital requirements of the distribution system industry. It integrates power input, output and power monitoring system. In addition to providing flexible, perfect and reliable energy management for customers, the system can also provide operation cost management and safety management functions, provide power distribution, power protection, power metering, power monitoring and other services for terminal important load equipment, and provide computer-level grounding protection. The key components of the equipment are all international famous brands, which are suitable for occasions with high reliability requirements of power supply.
Application fields:It is applicable to high-end data centers of domestic telecom, power, finance, large-scale production enterprises and other industries.
The power distribution and management problems in data center are solved flexibly according to the industrial IEC standard connector connection.
Multiple functional modules such as input and output power supply, computer level grounding, power monitoring and management, lightning protection and isolation are integrated in the cabinet. A full integration scheme not only improves the reliability of power supply, but also saves installation time and cost.
The requirements of heat dissipation and electric power bearing are fully considered in the layout of components according to the different environment and application of the power distribution system, the cable routing inside the cabinet is scientifically planned, and independent zero line bus and ground bus are equipped at the same time.
Designed according to the international general server cabinet design. The metal components in the cabinet are electroplated, and the door plate is painted and antirust.
The color of the cabinet can be customized according to the customer's requirements. It can be placed together with the server cabinet or installed against the wall, neat and beautiful.
The upper and lower lines can be selected flexibly according to the field situation. The inlet is equipped with protection device, which is safe and reliable.
The front and rear doors and double side baffles of the cabinet can be flexibly removed for easy multi-directional maintenance.
Comprehensive display of system state parameters, and the user can set the alarm point according to the specific situation.
Large LCD, user-friendly operation interface, and can display a lot of information.
The smart meter can be installed according to the user's requirements. The smart meter has the function of setting the upper limit current alarm, and the data can be uploaded through the standard RS485 communication interface.
Equipped with RS485 remote monitoring interface, it can be connected with the computer central monitoring system to complete the monitoring control of all key parameters and the alarm of power status.
Output micro break optional with hot plug, adjustable phase micro circuit breaker, easy to achieve continuous power maintenance and phase adjustment function.
The output shunt number can be up to 125 poles, and the internal wiring space is reserved, so the operation is safe, convenient and fast.
Multi input/output dry contact can be arbitrarily configured to easily monitor transformer over temperature and lightning arrester abnormality.
The frame is designed according to the load-bearing requirements of the electrical code, and K-factor type H-level isolation transformer is optional, so as to realize the real complete electrical isolation.
Power range: 2 ~ 400KVA
Special requirements can be customized
