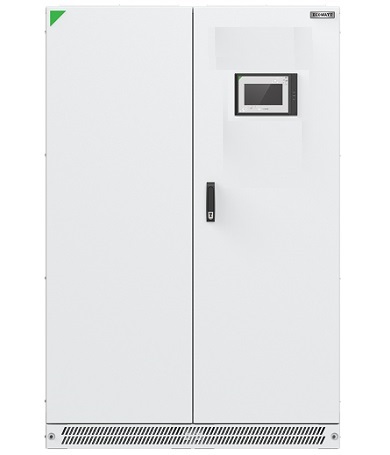

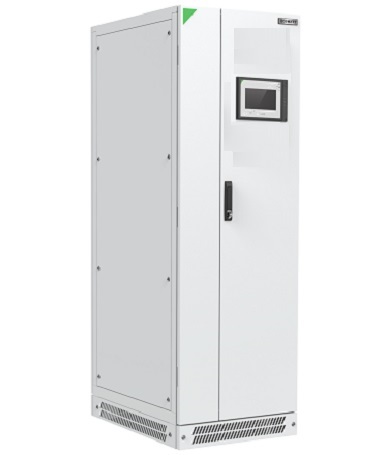

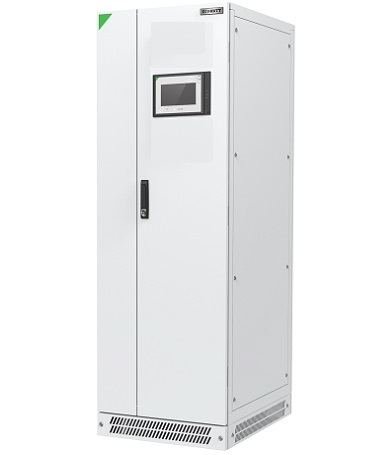

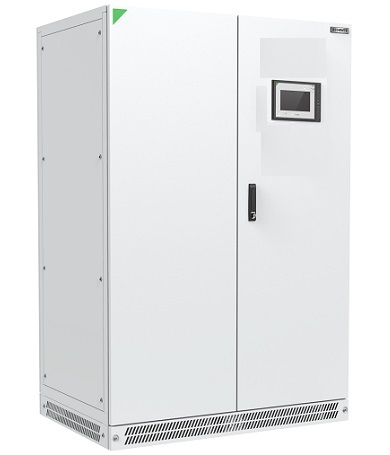

S7000 series 3/3 phase industrial UPS is for petroleum, chemical, natural gas, nuclear power, power plant, gold, Marine, steel, military and other industries in the harsh environment, high safety, reliability, maintenance and tailored design, product protection, resistance grid fluctuations and bad environment ability, has a high security and reliability. The UPS system adopts a new integrated design, and the rectifier adopts the high-frequency IGBT control scheme. The input performance index is greatly improved compared with the power frequency rectifier scheme. The output power factor is optional at 0.8/0.9, and the cabinet can choose welding or splicing structure according to the operating environment, which is suitable for the industrial application environment with high index requirements.
Application fields: Dedicated to petroleum, chemical industry, nuclear power, industrial manufacturing, metallurgy, electric power, military industry, aviation, rail transit, ships, iron and steel and other harsh application environment. There are also unique designed models that are specifically tailored to application scenarios such as power, offshore engineering, nuclear power, and ship-mounted.
Performance features:
Multi-DSP control, independent circuit detection and multiple fault protection, with software running fly bypass automatic takeover function, reliable and safe.
Built-in multiple communication ports and a variety of dry node signal interfaces, can realize real-time remote network management.
Strong load capacity, strong output resistance to short circuit, circuit board including special three-proof treatment process, strong adaptability to harsh environment.
Ultra-long average failure-free time and ultra-short average troubleshooting time, internal modular design, full front operation, built-in manual repair bypass, easy to maintain.
Unique air duct and protection design, standard IP20 protection level, optional higher grade protection components.
Super strong load capacity, super wide input voltage range and extremely strong resistance to harsh environment design, unique protection design, super impact resistance, greatly improve the reliability of the system.
Intelligent fan speed adjustment, support fan hot plug replacement, at the same time, built-in manual maintenance bypass, can achieve continuous electrical maintenance and unattended.
Support wall installation, main components, single board support before maintenance.
Support the independent output configuration of AC bus contact switch in industrial occasions.
It has intelligent battery management, complete battery protection, self-start and battery cold start function after battery discharge termination, ultra-wide battery voltage range, and also supports various types of battery access.
A variety of working modes can be selected, including intelligent machine integration, intelligent LBS technology, ECO mode, energy storage operation mode, and shared battery operation mode.
480V/60Hz, 220V/60Hz output voltage system can be customized.
Power range: 10 ~ 200KVA
Working mode: 3/1 phase, double transformation online, input/output full isolation
Special requirements can be customized
