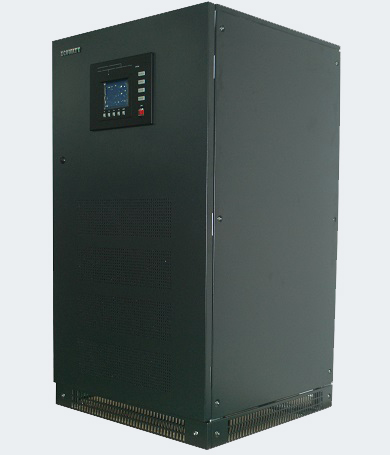

F6000 series 2-400kva intermediate frequency power supply is designed with online dual conversion topology architecture, which completely isolates the interference of power grid to load equipment. It is a safe, reliable, efficient and pure high-end variable frequency power supply with novel and beautiful shape, reasonable structure design, high stability and reliability, low distortion sine output, fast dynamic response and high protection level. The voltage and frequency have ±20% regulation range, which is suitable for three-phase balance and any unbalanced load, and can also be used as single-phase power supply. It can adapt to various types of loads such as resistive, capacitive, inductive and various mixed loads.
Application fields:
It can be used for aircraft and airborne equipment, radar, navigation and other military electronic equipment, as well as other occasions requiring 400Hz intermediate frequency power supply. It is the replacement product of unit type variable frequency power supply, which is suitable for laboratory or production line as the debugging experimental power supply. High power product is suitable for the whole aircraft power supply with large mixed load such as aircraft, radar station, and can also be used as the concentration of factory buildings and laboratories. The power supply can be used independently or loaded.
The voltage and frequency have ±20% regulation range, which can adapt to various types of loads such as resistance, capacitance, sensibility and various mixed loads, and can provide users with customized non-standard machines with special specifications of voltage and frequency, SNMP adapters and other options.
Ultra-wide input voltage and frequency range, to ensure that access to a variety of fuel generators can work stably.
Pure online dual conversion topology design, providing the best power quality.
SPWM pulse width modulation, IGBT power module and output isolation transformer are used to ensure that the output of if power supply is not interfered by grid fluctuation and noise.
Based on the advanced DSP+CPLD+MCU full digital control, improve the availability and reliability of the system.
Multiple protection features are taken into use, such as input surge protection, output overload, output short, over temperature and bypass power supply protection, which greatly guarantees the stability and reliability of the system.
It has the function of power on self-diagnosis, which can discover the hidden trouble of if power supply in time and avoid the possible trouble risk caused by potential trouble.
All digital intelligent parallel technology without master-slave and digital circulation control technology ensure that the parallel if power supply is put into the same frequency, phase and voltage, greatly reduce the circulation between parallel if power supplies, and comprehensively improve the reliability of the parallel system.
Insert the attached parallel card to realize the parallel operation of multiple if power supplies, improve the reliability of the system, increase the total output power, and upgrade a single machine to a parallel machine is easy to achieve, with strong scalability.
LCD + LED display interface provides accurate operation parameters and working conditions of if power supply.
It can communicate with PC in real time through the RS232/485 interface and the intelligent monitoring software. The parameters and working state of system are clearly displayed on the communication interface of PC. Computer can directly control various functions through setting.
With a variety of communication interfaces and optional external SNMP adapter, etc., system can direct access to the Internet, providing instant power information, communicating and managing through various network management platforms.
Power range: 2 ~ 200KVA
Working mode: 1/1 phase 3/3 phase, dual conversion online
Special requirements can be customized
